Cooler Master CM 690 II Advanced raises the bar again with practical improvements over the top-selling Cooler Master CM 690. The spacious mid-tower will keep enthusiasts happy with room for up to 3 vga cards, high-end CPU coolers, top or bottom mount water cooling radiator and 1.8"/2.5" drive adapter. It also features much improved airflow with oversized mesh and enough space for up to 10 fans. Maintenance will be a breeze with the tool-free drive bays, new cable management and CPU cooler retention hole.

Features:
- Oversized front and top mesh design for superb ventilation
- Accommodates 120 x 240 mm radiator inside the top or bottom
- Dust-control filters for all meshed areas
- Air cooling support for up to 10 fans (with support for up to 5 x 140mm fans)
- External SATA X-dock
- Front blue LED fan on/off switch
- Rear retaining holes for water cooling kit
- Includes 1.8" & 2.5" HDD and SSD adapter

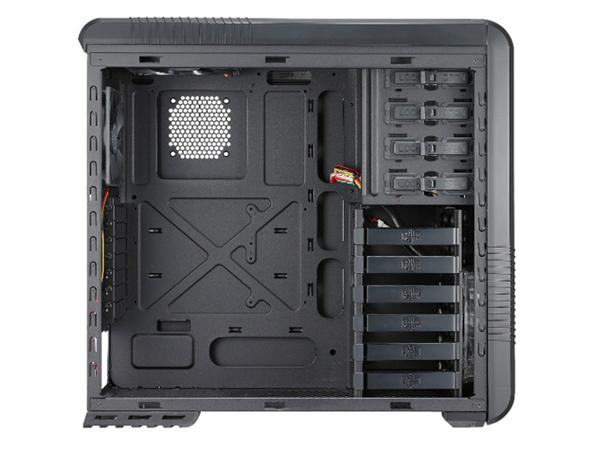

- Cable managment and CPU retaining hole for easy maintainence
- Includes VGA card bracket (supports triple GPU card)

Specifications:
Available Color: Black
Material: Steel body / Plastic + Mesh bezel
Dimension (W / H / D): 214.5 x 511.8 x 528.8 mm
Net Weight: 9.56 kg
Gross Weight: 11.56 kg
M/B Type: Micro - ATX / ATX / Mini-ITX(supports)
5.25" Drive Bay: 4 (without the use of exposed 3.5”drive bay)
3.5" Drive Bay: 6 Hidden / 1 Exposed (converted from one 5.25” drive bay)
I/O Panel: USB 2.0 x 2 , eSATA x 1 , MIC x 1 , Audio x 1 (supports HD / AC97 audio)
Expansion Slots: 7 + 1
Power Supply: Standard ATX PS2 / EPS 12V (optional)

Cooling System
Front: 140 x 25 mm Blue LED fan x 1 / 1200 RPM / 19 dBA
Rear: 120 mm fan x 1 / 1200 RPM / 17 dBA
Top: 140 x 25 mm fan x 1 / 1200 RPM / 19 dBA (supports 120 / 140 mm fan x 2)
Bottom: 120 mm fan x 2 (optional)
Left side: 120 / 140 mm fan x 2 (optional)
Right side: 80 x 15 mm x 1 (optional)
HDD cage: 120 mm fan x 1 (optional)
VGA holder: 80 x 15 mm fan x 1 (optional)

BEMÆRK UDEN STRØMFORSYNING!
