Standard PC Components

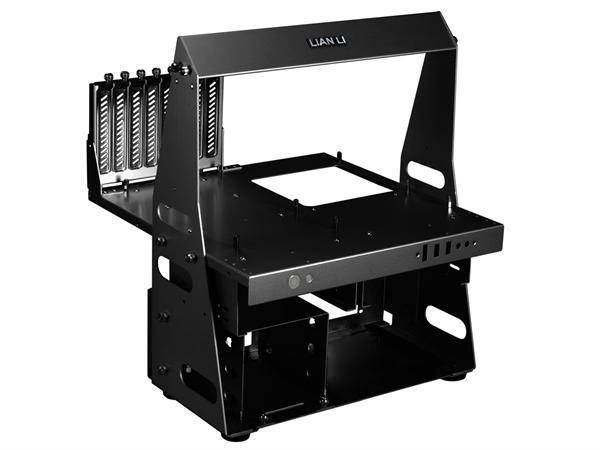

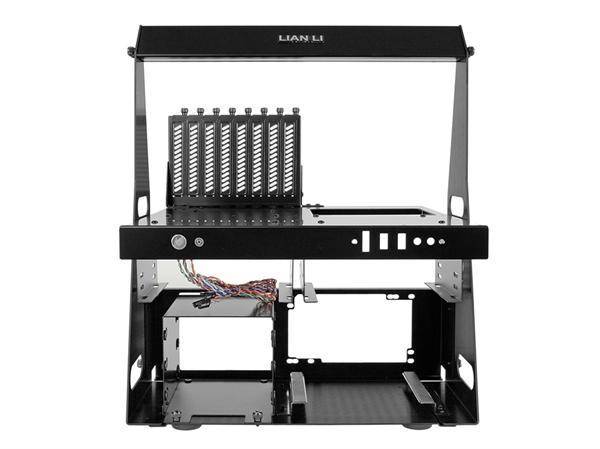

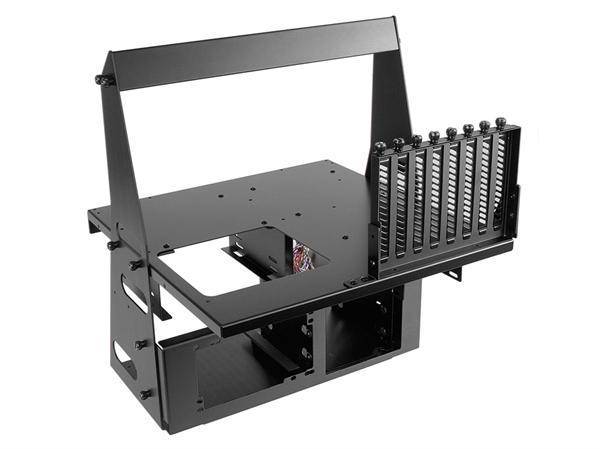

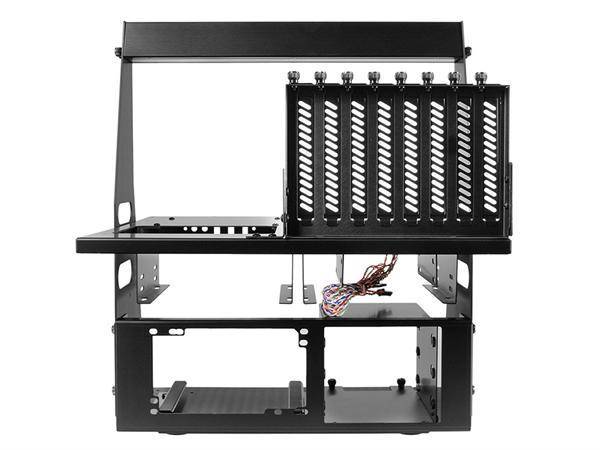

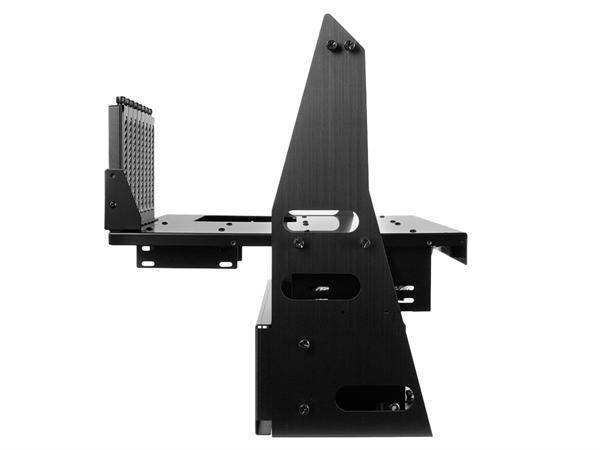

The T60 Test Bench mounts Standard ATX & Micro-ATX motherboards, 5.25” optical drives, 3.5” and 2.5” hard drives, and a standard ATX PS/2 power-supply unit. The open design makes it easy to switch components, mod, and service.

5.25" Drive Bays
Two, standard, 5.25” optical drives mount directly above the power-supply unit.

Removable HDD Cage
Three, 3.5” HDDs mount, using thumb-screws with rubber-suspension to prevent vibration.

Supports 2.5” HDDs
Aluminum mounts for two, 2.5" HDDs, directly below the M/B tray, allow user to easily install and remove them, as desired.

Trestle For PCI Card Stability
A trestle can be easily set-up with thumb-screws, to give the back-end of the T60 Test Bench additional stability.

Video Card Size
150mm Wide


Specifications:
Model: T60
Case Type: ATX / Micro-ATX Test Bench
Dimensions: (W) 351mm x (H) 400mm x (D) 330mm
Front bezel Material: None
Color: Black
Side Panel: None
Body Material: Aluminum
Net Weight: 1.8KG
5.25" drive bay (External): 2
3.5" drive bay (External): None
3.5" drive bay (Internal): 3
Expansion Slot: 8
Motherboard: ATX / Micro ATX
System Fan (Front): 120mm or 140mm Fans x 2 (optional)
System Fan (Top): None
System Fan (Rear): None
I/O Ports: USB 3.0 x 2 / e-SATA x 1 / HD+AC97 Audio (optional)
2.5" drive bay (Internal): 2
