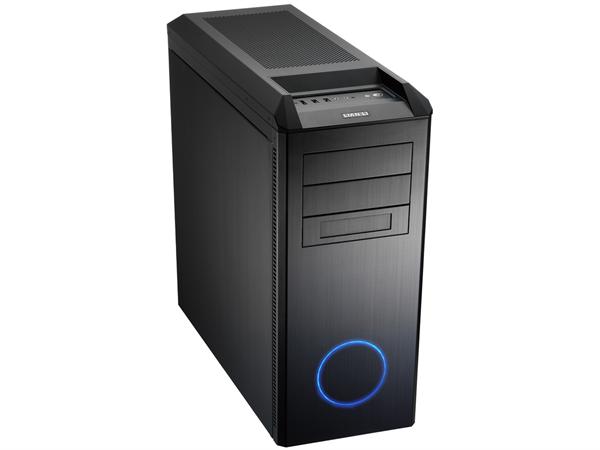

LIAN LI - Excellent Design
Lian Li redesigned the internal layout for a better thermal solution, PC-B25F uses large size cooling fans to remove the system heat faster and quieter as well as keeps the system more stable.

Lian Li Fine Craftmanship Product
Lian Li manufactured PC-B25F in Taiwan. The quality and craftsmanship are outstanding. With accolades and awards stretching back for the last two decades due to the unique combination of hand-crafted aspects with advanced machinery. The complete effort used to create every Lian Li chassis is clearly evident in the superior craftsmanship to be found in each one.

Use the latest grapics cards

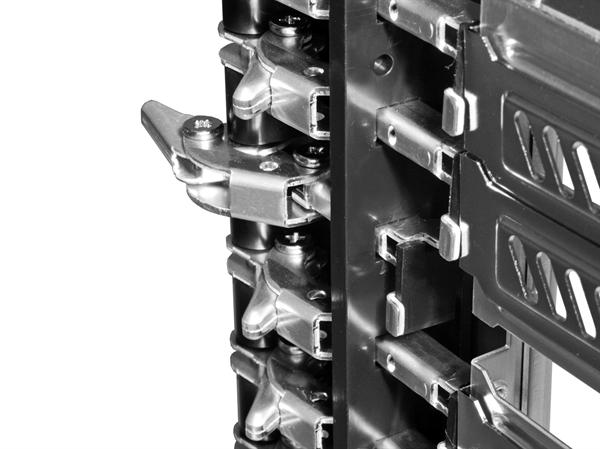

The new PC-B25F is a mid-tower case, which is ideal for the latest graphics cards in combination with the best thermal dynamics.Easily adjustable to optimize your hardware setup. Especially in the advent of adding in new graphics cards, equipped with 8 PCI slots, can hold three or more graphics cards, supports CrossfireX™ and 3-way SLI™.

Bottom mounted PSU

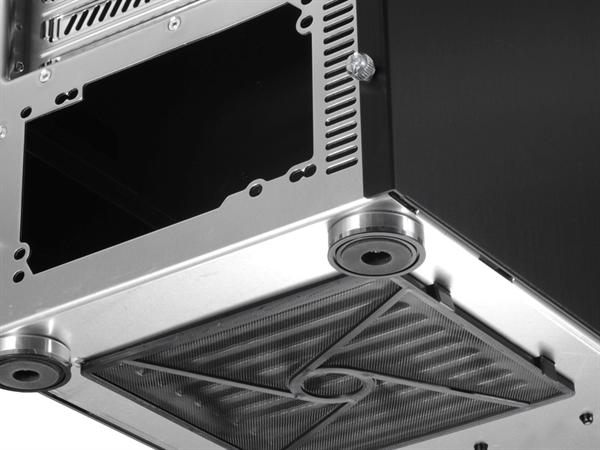

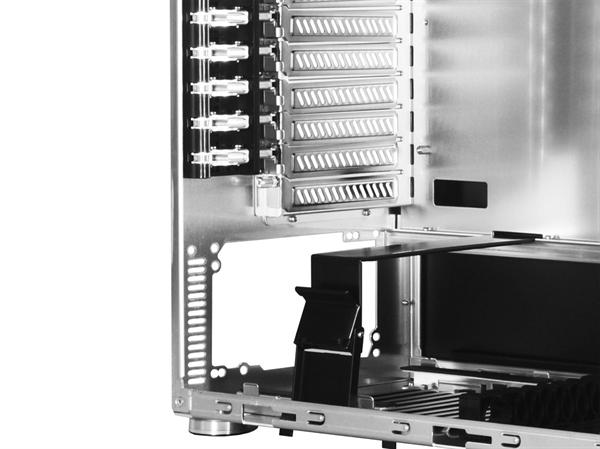

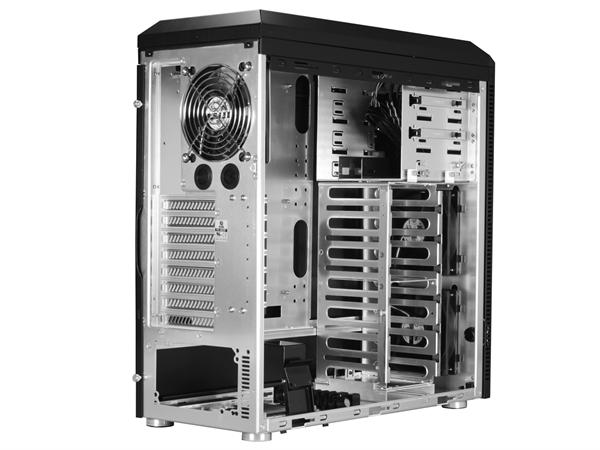

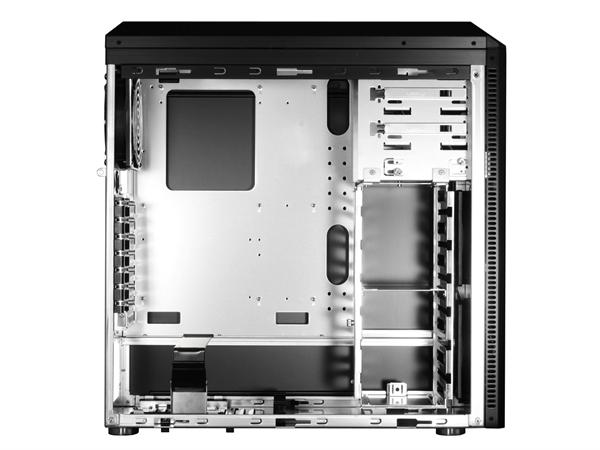

The new internal layout has the motherboard on top of the power supply unit, which allows for easier access to the motherboard as well as more room above, thus larger CPU coolers can be used. The power supply unit at the button of the case is cooled with fresh cool air directly from the outside of the case, instead of pre-heated air from within. This will bring down the core temperatures and extend the lifespan of the PSU significantly.

Silent Performance

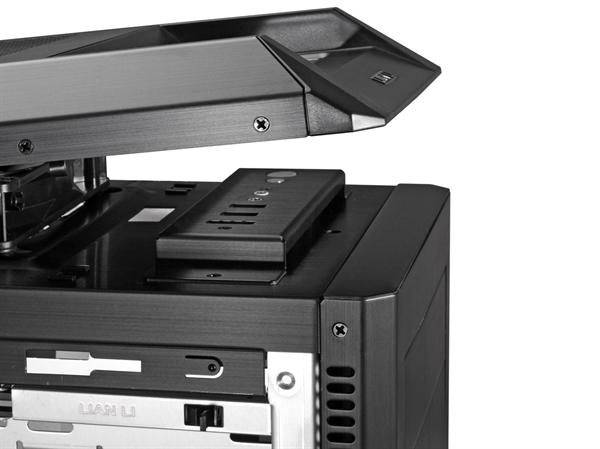

Lian Li uses the best “Made in Taiwan” high quality aluminum panel for all Lian Li chassis. The solid main chassis was folded with 1.5mm thick aluminum sheeting to make a more sturdy structure which has less vibration. The removable front and top panels are joined with specialized plastic kits that prevent the metal parts from touching each other, ultimately reducing noise created by fans and HDD vibration.

Thermal Solution

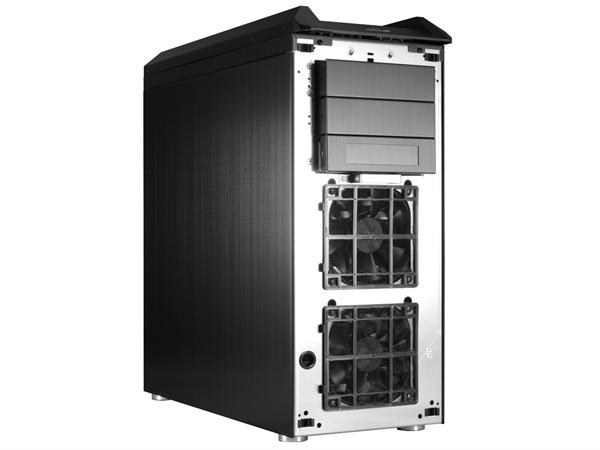

The PC-B25F is equipped with large cooling fans, with low RPM, which still provide enough air flow to cool down the hardware adequately. The front two 120mm intakes fan runs at 1200RPM.


Specifications:
Model: PC-B25F
Case Type: Mid Tower
Dimensions: 210mm x 507mm x 490mm ( W, H, D)
Front bezel Material: Aluminum
Color: Black
Side Panel: Aluminum
Body Material: Aluminum
Net Weight:

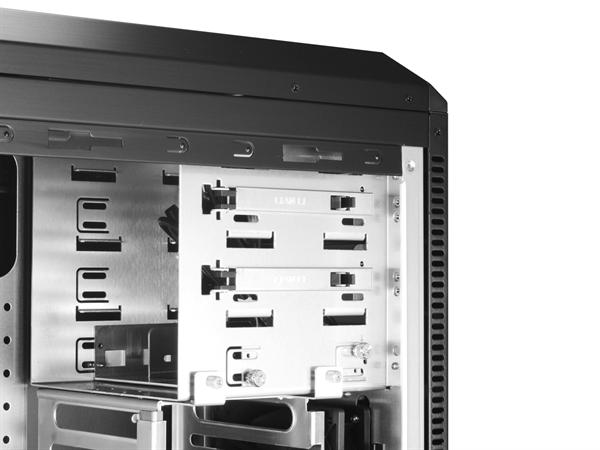

5.25" drive bay (External): 3( one for 3.5 inch convertor)
3.5" drive bay (External):
3.5" drive bay (Internal): 6
Expansion Slot: 8
Motherboard: ATX / M-ATX
System Fan (Front): 12cm Fan x 2 (1200RPM)

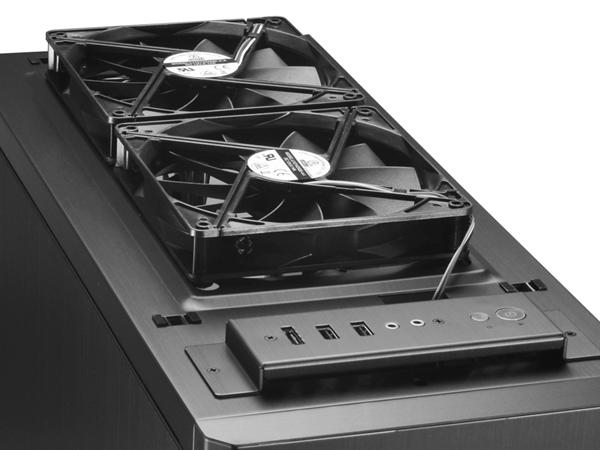

System Fan (Top): 14cm Fan x 2 (1000RPM)
System Fan (Rear): 12cm Fan x 1 (1500RPM)

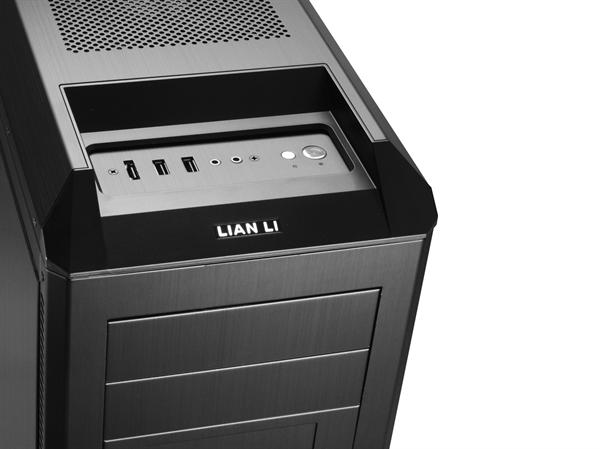

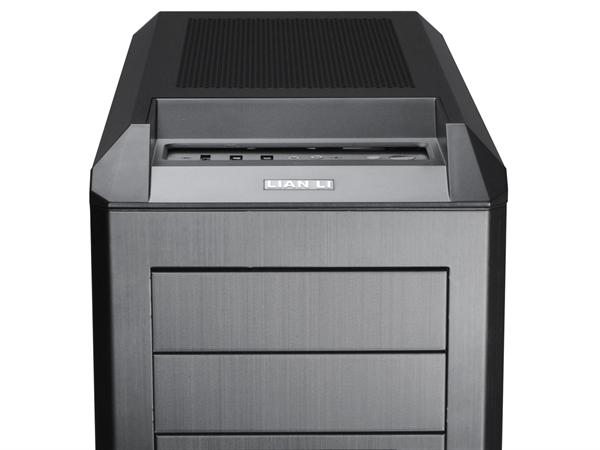

I/O Ports: E-SATA / USB2.0 x 2 / HD+AC97 Audio
