The NF-P12 has been specifically developed for applications such as CPU coolers that demand superior pressure and airflow performance. Thanks to psychoacoustic optimizations like the Vortex-Control Notches, the new SCD drive system and Noctua's premium-grade SSO-Bearing, the NF-P12 achieves exceptional quietness and long-term stability.

Pressure-optimized Nine-Blade Design
Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P12 provides superior pressure and airflow performance. button

Vortex-Control Notches
Psychoacoustic optimizations like the staggered Vortex-Control Notches make the NF-P12 surprisingly quiet. button

Smooth Commutation Drive
The NF-P12's new drive system reduces torque variations and thereby ensures improved running smoothness. button

Self-stabilizing oil-pressure bearing
Noctua's well proven SSO-Bearing technology guarantees supremely quiet operation and exceptional long-term stability.

Size: 120x120x25 mm
Bearing: SSO-Bearing
Blade Geometry: Nine Blade Design with VCN
Rotational Speed (+/- 10%): 1300 RPM
Rotational Speed with L.N.A. (+/- 10%): 1100 RPM
Rotational Speed with U.L.N.A. (+/- 10%): 900 RPM
Airflow: 92,3 m³/h
Airflow with L.N.A.: 78,5 m³/h
Airflow with U.L.N.A.: 63,4 m³/h
Acoustical Noise: 19,8 dB(A)
Acoustical Noise with L.N.A.: 16,9 dB(A)
Acoustical Noise with U.L.N.A.: 12,6 dB(A)
Static Pressure: 1,68 mm H2O
Static Pressure with L.N.A.: 1,43 mm H2O
Static Pressure with U.L.N.A.: 1,21 mm H2O
Input Power: 1,08 W
Input Current: 0,09 A
Voltage Range: 12 V
MTBF: > 150.000 h

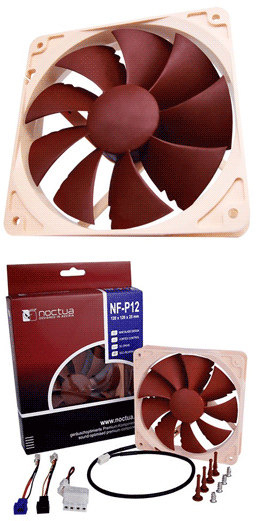

Scope of Delivery:
* Ultra-Low-Noise Adaptor (U.L.N.A.)
* Low-Noise Adaptor (L.N.A.)
* 4 Vibration Compensators
* 3:4-Pin Adaptor
* 4 Fan Screws
