Minimal air resistance between fins allowing best balance between noise and performance in range of 800-1200RPM. For all out performance, fan RPM at 1600 or above is recommended.

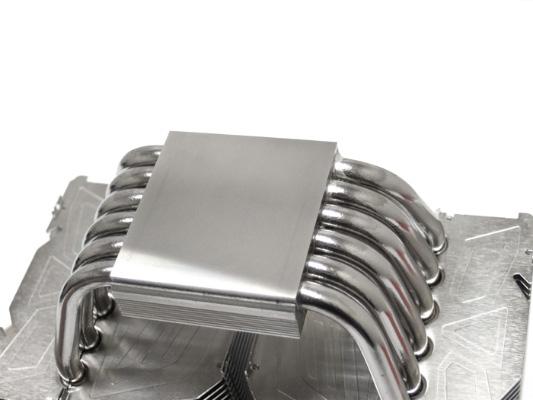

Heatpipes are lined up in a straight line to prevent air back draft allowing air to easily pass through the heatsink body.

Wide fins with mathematically calculated thickness to maximize best air-to-surface cooling rate.

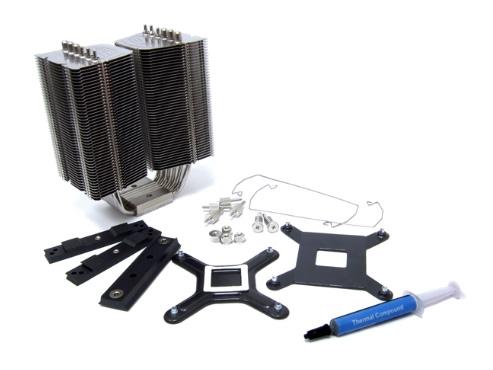

Uniquely designed, easy-to-install socket 775, 1156/1155 and 1366 retention mechanism to increase cooling ability.

Includes easy-to-apply high grade thermal compound, a perfect sidekick to all Prolimatech heatsinks.

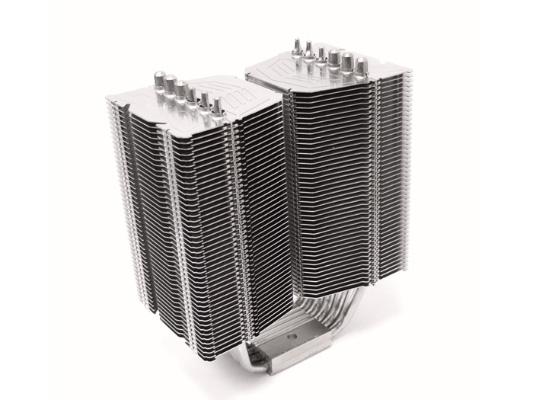

Prolimatech Megahalems Rev. B Specifications:
Heatsink Dimension: (L)130mm X (W)74mmX (H)158.7mm
Heatsink Weight: 790g
Heatpipe: Ø 6mm X 6pcs
Suggest Fan: 120mm X 120mm X25mm
Suggest Fan Speed: 800~1200rpm
Suggest Noise Level (dBA): Below 26dBA
Air Flow: 57CFM
Direction of heatsink: Faces the rear exhaust system fan

Prolimatech Megahalems Rev. B passer på Intel Socket 775, 1156/1155 og 1366.
