Features

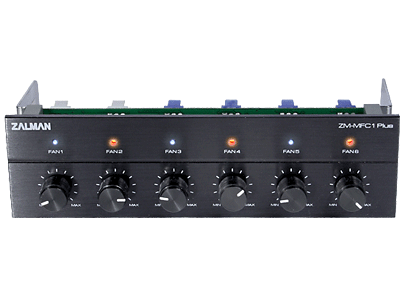

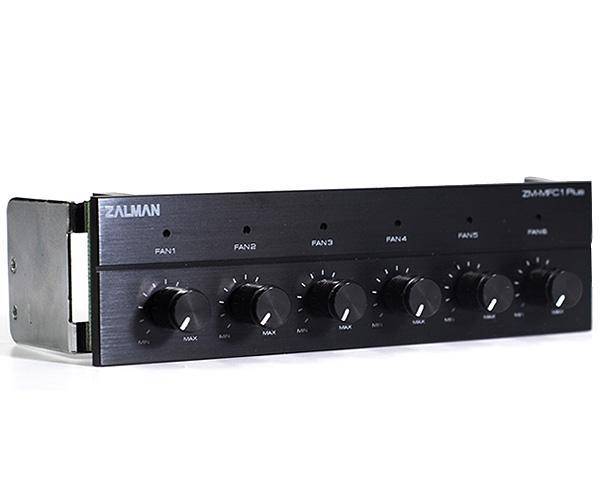

1. 6 Channel Multi Fan Controller
2. Comprehensive Control of Cooling Performance and Noise
3. Aluminum Front Panel for Maximum Aesthetic Quality
4. Fast & Easy Access to Fan RPM Control
5. Color & Intensity Variable LEDs for Simple Monitoring of Fan Speed

Specifications

Dimensions 148.5(L) X 65(W) X 42(H)mm
Channels 6
RPM Sensing Active RPM Sensing (All 6 Channels)
Fan Cables C1 Cable x 2 - Active RPM Sensing
C2 Cable x 4 - Non-RPM Sensing
Weight 220g
Maximum power 7.0W per channel
Input voltage 12VDC
Output voltage 5VDC - 11VDC 5%
